Harvesting & Crop Care Equipment
Crawler Carrier & Transporter (BG-3000 Series)
Heavy-duty tracked carriers designed to safely transport up to 500kg over the toughest agricultural terrains
Conquer rough, muddy, and sloped terrains with the ORATEXCA Crawler Carrier Series. Designed for maximum traction and power, these tracked transporters are your ultimate partner for moving heavy harvests, fertilizers, and equipment safely.
✔️ All-Terrain Tracks: Premium rubber crawler tracks provide exceptional grip and stability, preventing slipping or sinking in soft soil, mud, or steep orchards.
✔️ Massive 500kg Loadage: Built with a reinforced chassis and durable loading box to easily carry up to 500kg of heavy materials.

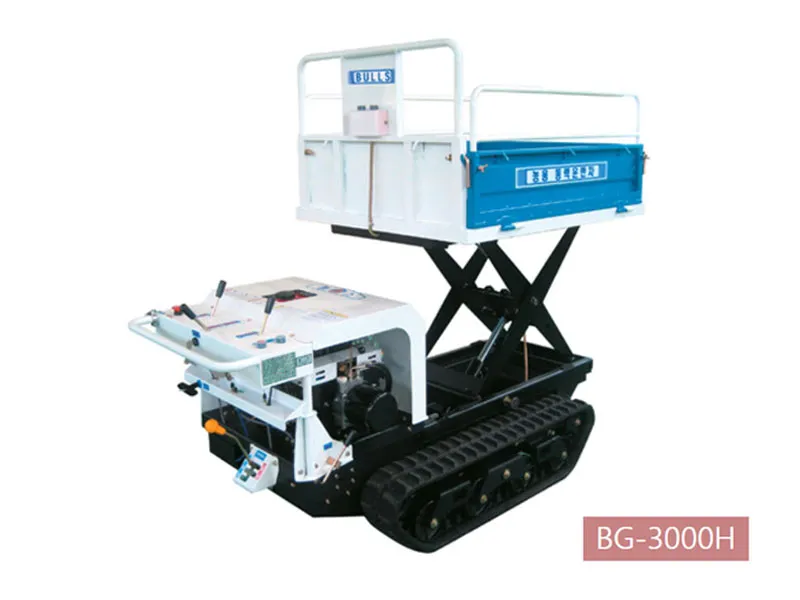

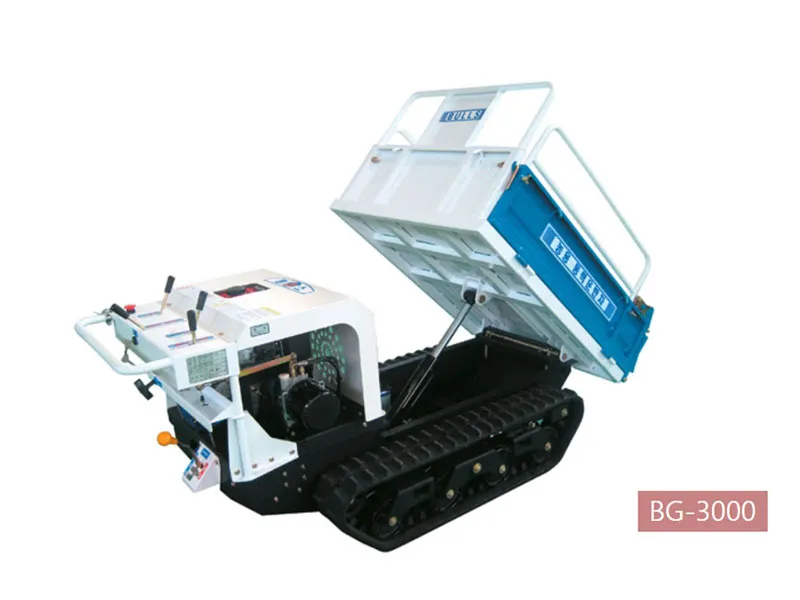

✔️ Hydraulic Lift & Dump: Choose the BG-3000 for an efficient hydraulic dump function, or upgrade to the BG-3000H to get an integrated scissor lift that raises the bed up to 120cm—perfect for high-reach tasks and effortless truck loading.
✔️ Reliable Power: Powered by a robust gasoline engine (Max 8HP) paired with a versatile transmission (3 forward / 2 reverse speeds) for ultimate directional control.
SPECIFICATION
| Model | Dimension (cm) (L x W x H) |
Weight (kg) |
Loadage (kg) |
Lift Height (cm) |
Engine (HP) |
Transmission |
|---|---|---|---|---|---|---|
| BG-3000H | 220 x 98 x 112.5 | 405 | 500 | 120 (Ground to box) |
Gasoline (Max 8) |
3 Forward 2 Backward |
| BG-3000 | 220 x 98 x 112.5 | 325 | 500 | - | Gasoline (Max 8) |
3 Forward 2 Backward |
* Note: Both models feature Ignition Key & Recoil starting systems and a 5L fuel tank.
* Specification can be changed without notice for upgrade.
ETC COMPONENTS
One-Touch Starter Key
Convenient key-start system ensures quick and effortless engine ignition, completely eliminating the physical strain of manual recoil starting.
Emergency Stop Switch
A highly visible and easily accessible safety switch allows for immediate engine shutdown in emergencies, ensuring maximum operator protection.
Versatile Transmission
Features a robust manual gearbox with 3 forward and 2 reverse speeds, providing precise speed control across varying sloped, muddy, or rough terrains.
PARTIAL FEATURE

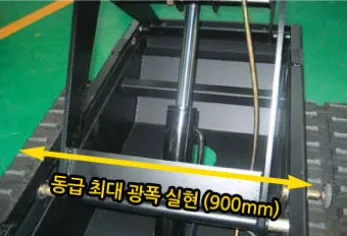

Robust Infrastructure (Max 900mm)
Ensures ultimate lifting safety with a class-leading 900mm wide lower frame and oversized hydraulic cylinders, providing unmatched structural durability.

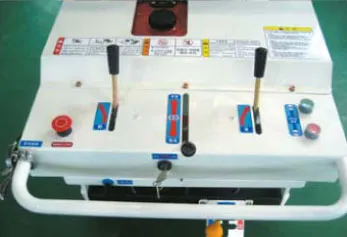

Centralized Control Unit
All operating levers and functions are intuitively gathered at the main handle, drastically maximizing work efficiency and operational safety.

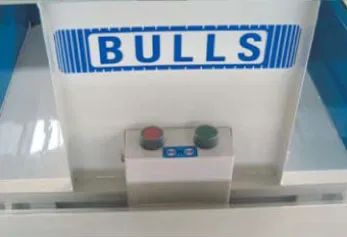

Loading Box Lift Controls (BG-3000H)
Convenient auxiliary up/down buttons are located directly on the loading box, allowing for safe and seamless control during high-position operations.

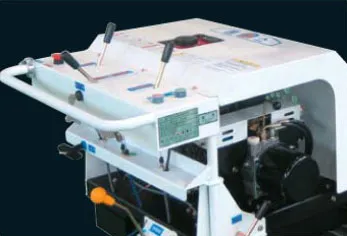

Engine & Pump Protection Cover
A heavy-duty shield protects the vital engine and hydraulic pump from dust, branches, and foreign debris, preventing costly failures and enhancing machine lifespan.

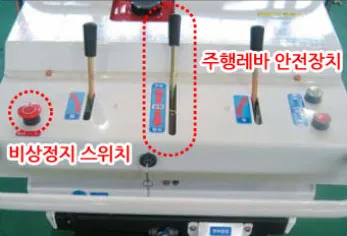

Built-In Complete Safety System
Features an immediate emergency stop switch and a driving lever safety interlock that prevents engine ignition while the transmission is engaged.

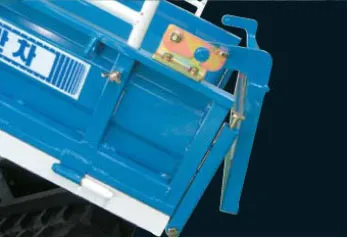

Auto Back Door Mechanism (BG-3000)
The highly convenient mechanical switchgear automatically opens the rear door as the box tilts for dumping, making unloading heavy materials completely effortless.
