Hay & Forage Equipment
Folding Rotary Rake (SRF 4800 / 5000)
Compact 4-Tire Folding Rotary Rake for Safe and Efficient Operations
Premium folding rotary rakes designed with unique hydraulic technologies to ensure safe transport and high-efficiency forage gathering.
✔️ Safe & Narrow Transport: Designed to minimize the folding width to less than 2.7m, ensuring perfectly safe driving even on narrow farm roads.
✔️ Hydraulic Frame Lock: Features an advanced left and right frame lock device that can be conveniently hydraulically lowered and unfolded from within the tractor.

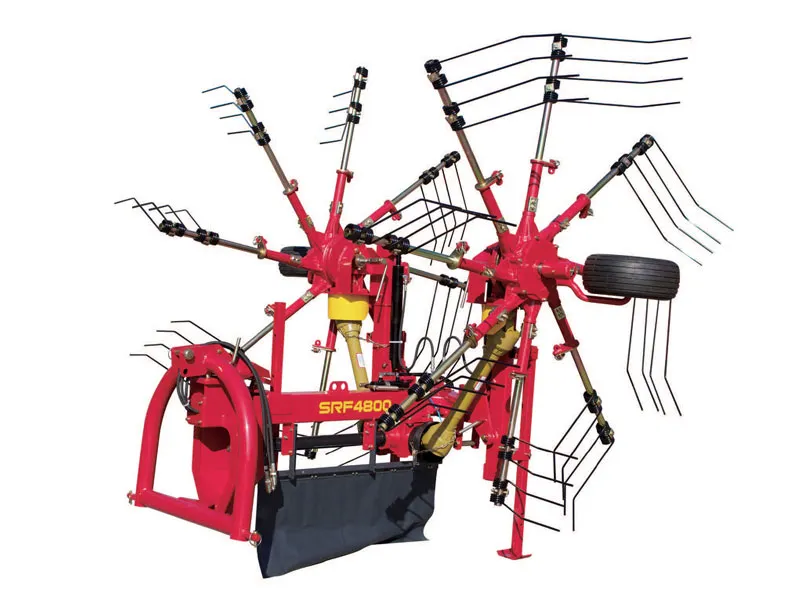

✔️ Adjustable Efficiency: The SRF 5000 offers a 2-stage adjustable working width (4.6m/4.8m) with a simple operation, while the SRF 4800 provides a reliable fixed 4.5m width.
✔️ Maintenance-Free Durability: The sophisticated cam track is securely inserted into the gearbox oil, guaranteeing a semi-permanent lifespan with absolutely no noise or foreign substance inflow.
✔️ Flexible Operation: Utilizes a high-quality two-way universal joint to provide exceptional balance, making it highly adaptable for both field operations and road transport.
SPECIFICATION
| Model | Size (L x W x H) cm (Folding Size) |
Operating Width (cm) | Rotor Diameter (cm) | Weight (kg) | Power Req. (hp) |
|---|---|---|---|---|---|
| SRF 4800 | 231 x 450 x 127 (231 x 245 x 240) |
450 | 210 | 580 | 50 |
| SRF 5000 | 242 x 480 x 127 (242 x 256 x 244) |
460 ~ 480 | 215 | 620 | 50 |
