Harvesting & Crop Care Equipment
Automatic & Semi-Automatic Hose Reel
High-efficiency motorized hose reels designed to minimize labor and maximize convenience during agricultural spraying
Maximize your spraying efficiency with the ORATEXCA Hose Reel Series. Say goodbye to the exhausting labor of manually winding heavy, tangled hoses. Our motorized hose reels ensure smooth, organized, and effortless hose management for professional farmers.
✔️ Wireless Remote Control: The BG-160 series features an advanced remote control system, enabling true one-person operation and saving immense labor costs.
✔️ Powerful Motor Drive: Equipped with robust DC12V (or AC220V for the M model) motors that effortlessly pull and wind long, heavy hoses without stalling.
✔️ High-Capacity Options: Select models come pre-equipped with a premium 150m ($10\Phi$) high-pressure hose, ready for extensive field coverage right out of the box.

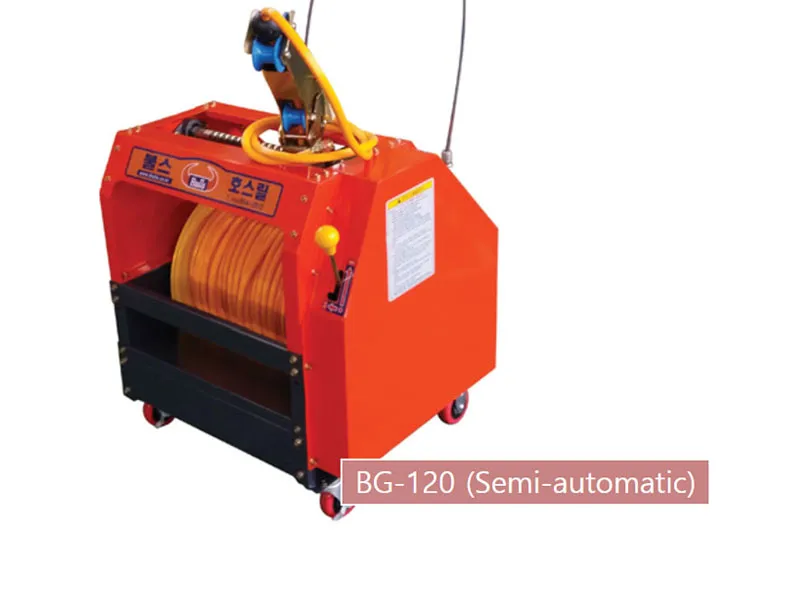

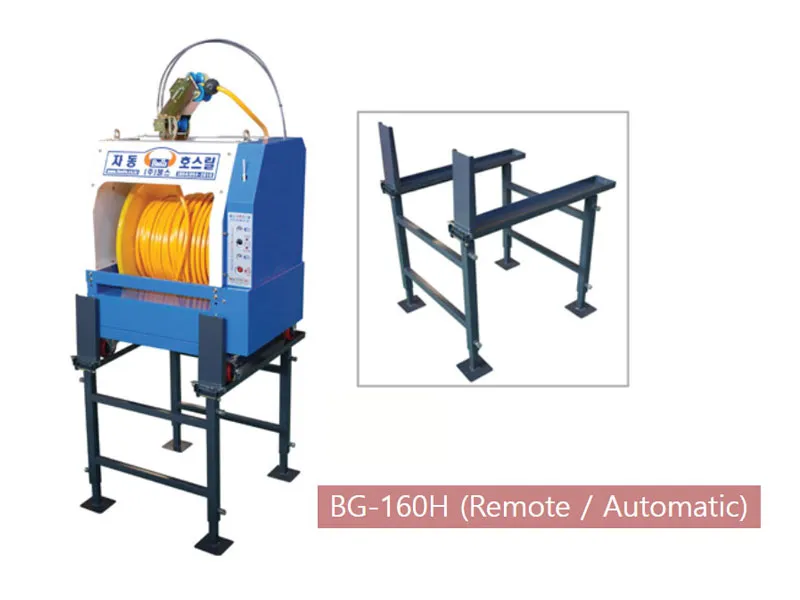

✔️ Versatile Configurations: Choose the perfect setup for your farm, from fully automatic remote models with dedicated stands (BG-160H) to cost-effective semi-automatic options (BG-120).
SPECIFICATION
| Model | Dimension (cm) (L x W x H) |
Weight (kg) | Motor | Remark (Included Features) |
|---|---|---|---|---|
| BG-160 | 79.5 x 79.3 x 113.9 | 100 | DC12V, 250W | Remote control (Exclude hose) |

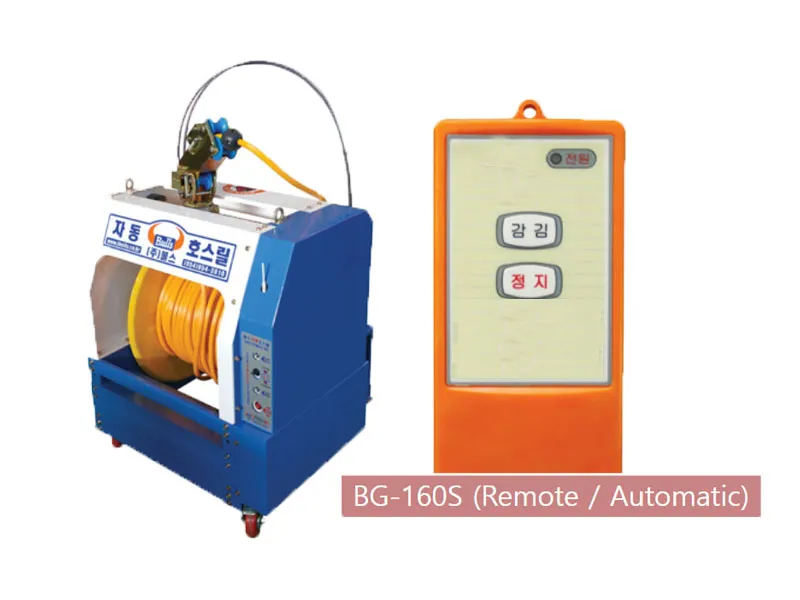

| BG-160S | 79.5 x 79.3 x 113.9 | 103 | DC12V, 250W | Remote control + 10Φ Hose (150m) |
| BG-160H | 79.5 x 79.3 x 113.9 | 103 | DC12V, 250W | Remote control + 10Φ Hose (150m) + Hose Reel Stand |
| BG-160M | 79.5 x 79.3 x 113.9 | 110 | AC220V, 400W | Remote control + 10Φ Hose (150m) + Hose Reel Stand |
| BG-120 | 79.5 x 79.3 x 113.9 | 100 | DC12V, 250W | Semi-automatic control (Exclude hose) |
* Specification can be changed without notice for upgrade.
MAJOR COMPONENTS
Directional Hose Guide
Smoothly guides the hose from various angles, significantly reducing friction and wear during the winding process.
Level Wind Rollers
Frictionless guide rollers ensure the high-pressure hose is guided smoothly without scratching or kinking.
High-Pressure Rotary Joint
Premium brass swivel joint prevents any leaks and ensures consistent, uninterrupted water flow even during high-speed rotation.
Integrated Control Panel
User-friendly interface featuring intuitive winding, stopping, and directional controls for highly precise manual operation.
Traverse Worm Gear
Precision-engineered worm gear mechanism automatically and evenly distributes the hose across the spool without overlapping.
Robust Chain Drive
Heavy-duty industrial chain and sprocket system delivers reliable, slip-free power transmission from the motor to the reel.
Quick Power Connectors
Highly durable and secure quick-connect terminals (Anderson plugs) allow for safe and effortless power supply attachment.
High-Torque Motor System
Powerful internal motor and gear assembly capable of effortlessly pulling and winding up to 150m of heavy, water-filled hose.
