Tillage Equipment
Rotary Tiller (T Model)
High-efficiency soil cultivation and seedbed preparation for versatile farming needs
Hydraulic side-shift rotary tiller perfect for greenhouses and orchards.
✔️ A hydraulic side-shift mechanism easily adjusts the tilling section for convenient operation in greenhouses and orchards.

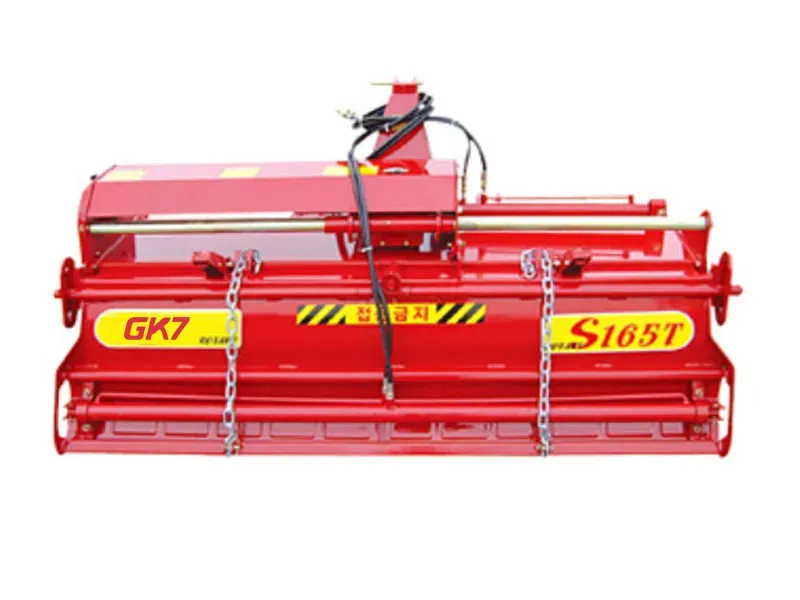

✔️ The drive shaft is equipped with a special seal to prevent foreign matter ingress and extend bearing life.
✔️ The bevel gear box input shaft features a 2-point support system, offering outstanding strength and durability.

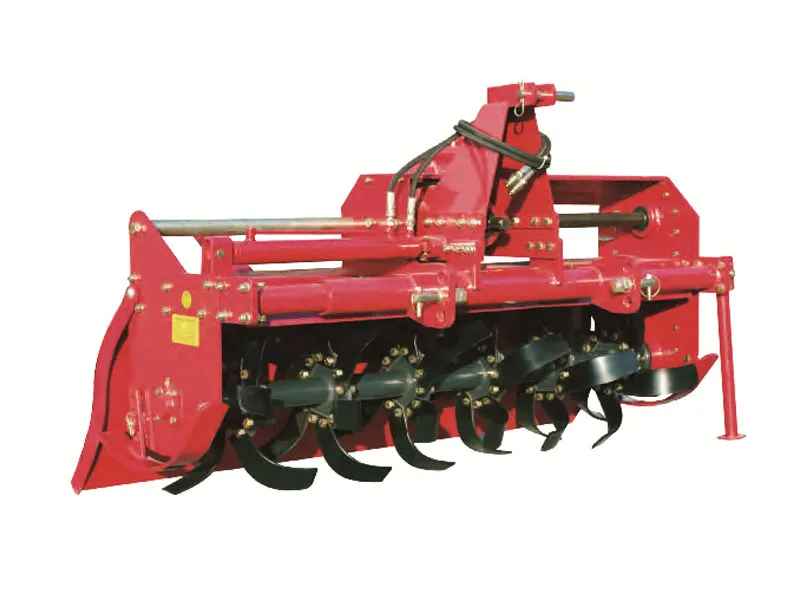

✔️ A flange-type tiller shaft is adopted to effectively pulverize hard soil.
SPECIFICATION
| Model | Size (L x W x H) cm | Operating Width (cm) | Number of Blades | Weight (kg) | Power Req. (ps) | Drive Type |
|---|---|---|---|---|---|---|
| S145T | 86 x 163 x 92 | 143 | 36 | 306 | 28~35 | Side Chain |
| S155T | 86 x 171 x 92 | 155 | 42 | 330 | 30~35 | Side Chain |
| S165T | 86 x 182 x 92 | 163 | 42 | 366 | 35~43 | Side Chain |
| S165TF | 89 x 183 x 100 | 163 | 36 | 403 | 35~41 | Side Gear |
| S175TF | 89 x 193 x 100 | 173 | 42 | 420 | 41~50 | Side Gear |
