Tillage Equipment

GK7 heavy-duty large field rotary tiller by ORATEXCA (TGW Model)

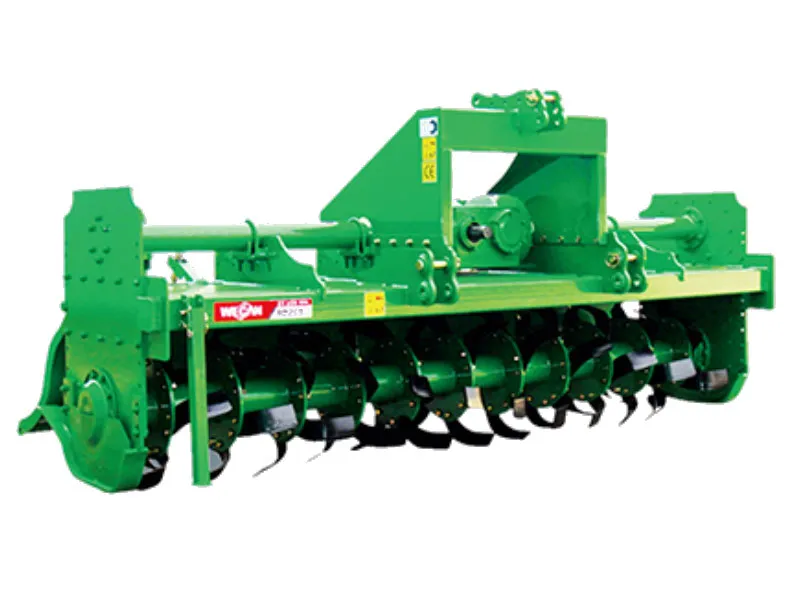

Equipped with heavy-duty blades and a double-structured frame for deep tilling

Rotary Tiller (TGW Model)

Heavy-duty rotary tiller for large-scale fields

Premium heavy-duty rotary tiller engineered for high-horsepower tractors to maximize tilling force in expansive fields.

✔️ Equipped with a high-capacity gearbox specifically designed to handle heavy workloads smoothly and efficiently.

✔️ Features a double-structured upper frame that significantly enhances durability and prevents distortion over long-term use.

✔️ Designed to minimize the vibration of the tiller shaft and the main frame, ensuring stable operation and reducing operator fatigue.

✔️ Uses special group seals on the drive shaft to protect gears and block foreign substances, extending bearing life.

SPECIFICATION

Model Size (L x W x H) cm Operating Width (cm) Number of Blades Weight (kg) Power Req. (ps) Drive Type
TGW-2600 122 x 267 x 139 260 60 1100 120~130 Side Gear
TGW-2850 122 x 295 x 139 285 66 1200 125~150 Side Gear
TGW-3050 122 x 329 x 139 305 72 1300 150~ Side Gear
